Car in your bag.
"If you can carry a car"
The world's smallest Portable Mobility born from such an idea.
Commuter by train, from the station to your house, to your destination a few kilometers away.
The wider the area of movement, the more vibrant and prosperous people's lives will be.
We will also change lifestyles and the way cities should be.
WALKCAR changes the concept of movement
Innovative mobility.
WALKCAR in the city
Introducing WALKCAR that can run on public roads in Japan
WALKCAR (10 km / h model) Released on October 15, 2021
Performance
Smooth driving
Run to slide on the ground
Uplifting
Exciting and dynamic movement
New experience
Experience that can only be experienced with WALKCAR
The timing of the next test drive event is "undecided".
2.9kg
"Strong and compact body"
This car, which you can carry around like a laptop,
Support your movement at any time.
Take it anywhere you like and from your bag
You can take it out quickly and get on immediately.
Also, because it can be placed upright, it can be charged or
You don't have to worry about the storage space.
13inch laptop size
Polycarbonate material with excellent impact resistance is used for the boarding surface. Furthermore, the surface is coated with a self-healing paint to prevent scratches and improve grip.
Carbon (CFRTP)
Carbon material is used for the main frame of the main body to realize an "ultra-lightweight" and "tough" body. It is 10 times stronger and 1/4 lighter than iron, and is supported by a carbon frame with a thickness of only 3.3 mm.
In addition, the highly elastic body itself makes it possible for the tires to firmly capture the road surface and enable "flexible driving."
Extra super duralumin (A7075)
The frame that supports the front and rear wheels uses ultra-super duralumin cut products that are also used for aircraft wings in order to achieve "lightness and strength."
"I want to go somewhere"
design
Minimal design concept
While having the function of achieving high running performance even outdoors, we have eliminated waste and pushed the lightness and storability to the utmost limit.
In addition, it is designed so that screws that impair the design are not visible at all, and the simple look enhances the fashionability as something to wear and carry around.
Coloring that blends into the blue sky and the city
Blue with the image of running under the blue sky with an active feeling.
A chic blue that blends into your cityscape and asphalt.
Finished in a color that shows both expressions.
A new color "Ipsum Silver" has been added to the lineup.
Formal colors make it easy to match with any occasion, and a minimal and cool WALKCAR design
Bring out.
"Running performance beyond imagination"
High performance
World's smallest * 1 in-wheel motor
Newly developed motor for WALKCAR.
Welded joints have reduced wasted screw space and maximized coil space.
The ultra-compact size has achieved torque performance of 16km / h, which is comparable to that of a bicycle, and powerful climbing uphill * 2 at 10 degrees .
*1 For in-wheel motors for single-seater mobile devices. As of May 2020, according to our research.
*2 Loaded 60 kg and value in our test environment
15 km / h
10 °
maximum speed
Climbing ability
Suspension mechanism
4-wheel independent suspension.
In addition to the vertical suspension, the front wheels are equipped with a front-rear suspension.
It softens the impact of uneven roads and steps, and achieves high running performance even with a small tire diameter.
Vertical direction
Vertical direction
Longitudinal direction
Hands-free operation
"Simple and intuitive"
Sensing
By using the 4-point sensor built into the boarding surface, you can accelerate, decelerate, and curve with simple foot operations centered on the movement of the center of gravity.
basic operation
* 1
move on
Step on "both feet" toes
Bend your knees lightly and tilt your center of gravity
Bend
Lightly raise "one" toe
Decelerate
Automatic stop when getting off
When you get off WALKCAR, it will stop automatically at your feet.
Stop
* 1 Please refer to the "Instruction Manual" for details on how to ride.
3 modes
"Fit to the scene"
4 km/h , 6km/h mode
You can ride with confidence at the speed of a fast walk.
Suitable for running in parallel with pedestrians or moving indoors.
Maximum speed
6 km / h
Cruising range approx.
7 km * 1
10km / h mode
It is suitable for running far and walking while enjoying the scenery at the speed of running.
Cruising range approx. 7km * 1
Maximum speed
10 km / h
15km / h mode
It is suitable when you want to move fast or enjoy active driving at the speed of a bicycle.
Cruising range approx. 5km * 1
Maximum speed
16 km / h
* 1 Load weight 60 kg and value in our test environment
Fast charge
30min-80%
60min-100%
If you carry a charger with you, you can quickly charge it in your spare time at a cafe or office.
Functions that enhance safety
Vehicle height of only 74 mm
In addition to the stability of the four wheels, the vehicle height is only 74 mm from the ground (about the width of the smartphone), and the flat boarding surface makes it easy to get on and off, and you can get off in front, back, left and right even in a moment.
Equipped with automatic braking system
The autobrake system operates slowly so that the speed does not increase too much on the downhill.
Furthermore, the regenerative energy charges the battery and extends the cruising range.
GALLERY
About driving on public roads in Japan
WALKCAR with a maximum speed of 10 km / h or less can run on public roads
The National Police Agency has notified prefectural police nationwide that WALKCARs with a maximum speed of 10 km / h or less do not fit vehicles under the Road Traffic Act (July 14, 2021). .. As a result, the newly released WALKCAR (10 km / h model) will be able to pass on the sidewalk at a speed of 10 km / h or less as a pedestrian when traveling on public roads. However, since it is treated the same as a Kick Scooter, it is prohibited to use it on a road with frequent traffic (Road Traffic Law, Article 76, Paragraph 4, Item 3).
WALKCAR (15 km / h model), which has a maximum speed of 15 km / h, is not allowed to drive on public roads even at speeds below 10 km / h. It corresponds to a vehicle (motorized bicycle) under the Road Traffic Act, and it corresponds to poorly maintained vehicle driving because it is not equipped with a braking device, headlights, rearview mirror, etc. (Penalty: imprisonment for up to 3 months or a fine of up to 50,000 yen)
Based on the new traffic rules announced by the National Police Agency, WALKCAR (15 km / h model) may fall under the category of "small low-speed vehicles" that can run on public roads, but it is undecided at this time.
Buy
JPY ¥217,800
Made in Japan
International shipping for 170 countries overseas. ( Countries list )
Click here to purchase by quotation
Post-purchase changes
(Only in Japan)
>> Application
Idea Blue
Idea blue
Ipsum Silver
Ipsum silver
*2 Depending on the production period, the product weight, color, size, design, or material texture may be somewhat different. Please note that in advance.
SHOP
WALKCAR actual machine on display (idea blue / ipsum silver)
Tsutaya Kaden +
〒158-0094 1-14-1 Tamagawa, Setagaya-ku, Tokyo Futako Tamagawa Rise SC Terrace Market Futako Tamagawa Tsutaya Kaden 1F
Product specifications *
Product name WALKCAR (15 km / h model)
[WALKCAR (10 km / h model)]
Model MTKSR-5 [MTKSR-5J]
Dimensions 215 mm x 346 mm x 74 mm
Weight 2.9 kg
Maximum speed 15 km / h [10 km / h]
10 km / h [6 km / h]
6 km / h [4 km / h]
Maximum climbing 10 degrees
Mileage 7 km
* 5 km only in 15 km / h mode
Maximum weight 80 kg
Minimum weight 30 kg
Charging time 60 minutes
Energy Lithium Ion (Li-ion), 68 Wh
Power supply Household outlet 100 to 240 V 50/60 Hz
Rated output 260 W
Environment -10 to 40 ° C
Included items WALKCAR , charger, instruction manual
*2 Depending on the production period, the product weight, color, size, design, or material texture may be somewhat different. Please note that in advance.
Purchase of replacement parts and additional items
Front tires (for replacement)
Rear tire (for replacement)
Rear tire replacement manual. PDF
¥5,280
¥5,280

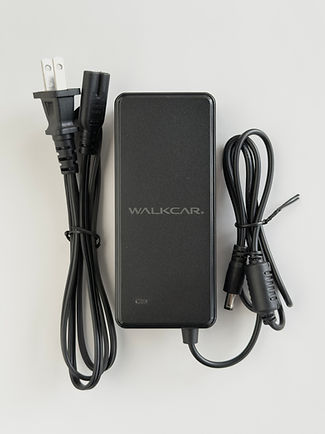

Charger
Set of 2 with replacement tool
¥7,480
Battery exchange repair
¥18,000
・ The price includes new batteries, accessories, and repair wages.
・ For battery replacement requests, please contact the customer desk (support@cocoamotors.com).
